Frame Metadata
Orbbec Gemini 330 Series Documentation

Frame Metadata

Update on 2025-07-25 03:56:55

Frame metadata is a set of parameters (or attributes) that provide a snapshot of the sensor configuration and/or system state present during the frame’s generation. The attributes are recalculated and updated on a per-frame basis. Orbbec SDK supports querying a set of predefined attributes as part of the frame data available to the end-user.

1. API

Orbbec SDK introduces two functions into its public API to query metadata:

C:

/**
 * @brief check if the frame contains the specified metadata
 *
 * @param[in] frame frame object
 * @param[in] type metadata type, refer to @ref ob_frame_metadata_type
 * @param[out] error Log error messages
 */
bool ob_frame_has_metadata(ob_frame *frame, ob_frame_metadata_type type, ob_error **error);

/**
 * @brief Get the metadata value of the frame
 *
 * @param[in] frame frame object
 * @param[in] type  metadata type, refer to @ref ob_frame_metadata_type
 * @param[out] error Log error messages
 * @return int64_t return the metadata value of the frame
 */
int64_t ob_frame_get_metadata_value(ob_frame *frame, ob_frame_metadata_type type, ob_error **error);

C++:

// Member functions of class ob::Frame

/**
* @brief Check if the frame object has metadata of a given type.
*
* @param type The metadata type. refer to @ref OBFrameMetadataType
* @return bool The result.
*/
bool hasMetadata(OBFrameMetadataType type);

/**
* @brief Get the metadata value
*
* @param type The metadata type. refer to @ref OBFrameMetadataType
* @return int64_t The metadata value.
*/
int64_t getMetadataValue(OBFrameMetadataType type);

2. Example

The envisaged mode of querying metadata attribute is check-then-query

const char *metaDataTypes[] = { "TIMESTAMP", "SENSOR_TIMESTAMP","FRAME_NUMBER",
                                "AUTO_EXPOSURE", "EXPOSURE", "GAIN",
                                "AUTO_WHITE_BALANCE", "WHITE_BALANCE", "BRIGHTNESS",
                                "CONTRAST", "SATURATION", "SHARPNESS",
                                "BACKLIGHT_COMPENSATION", "HUE", "GAMMA",
                                "POWER_LINE_FREQUENCY", "LOW_LIGHT_COMPENSATION", "MANUAL_WHITE_BALANCE",
                                "ACTUAL_FRAME_RATE", "FRAME_RATE",  "AE_ROI_LEFT",
                                "AE_ROI_TOP",  "AE_ROI_RIGHT", "AE_ROI_BOTTOM",
                                "EXPOSURE_PRIORITY", "HDR_SEQUENCE_NAME", "HDR_SEQUENCE_SIZE",
                                "HDR_SEQUENCE_INDEX", "LASER_POWER", "LASER_POWER_MODE",
                                "EMITTER_MODE", "GPIO_INPUT_DATA" };
ob::Pipeline pipe;
pipe.start(nullptr);

auto frameSet = pipe.waitForFrames(100);
auto colorFrame = frameSet->ColorFrame();
for(int metaDataType = 0; metaDataType < OB_FRAME_METADATA_TYPE_COUNT; metaDataType++) {
     // Check if it is supported metaDataType for current frame
    if(colorFrame->hasMetadata((OBFrameMetadataType)metaDataType)) {
       // Get the value of the metadata
       auto value = colorFrame->getMetadataValue((OBFrameMetadataType)metaDataType)
       std::cout << metaDataTypes[metaDataType] << ": " << value << std::endl;
    }
    else {
        std::cout << metaDataTypes[metaDataType] << ": " << "unsupported" << std::endl;
    }
}

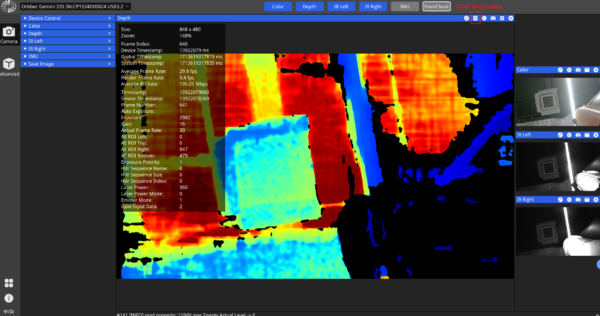

3. Display Frame Metadata in OrbbecViewer


4. OS Support

Windows OS – Metadata extraction is supported by Microsoft starting with Windows 10. Check the Windows installation guide for details.

Other OS – We use libuvc/libusb as the default backend, which does not require any operation to enable metadata support.

5. Devices Support

Currently, only the Orbbec Gemini 300 series supports those APIs.
