Quick Start Guide for Gemini 435Le

Update on 2025-12-09 02:38:48

ON THIS PAGE

1. WHAT'S IN THE BOX?


                                                                     Gemini 435Le 3D Camera

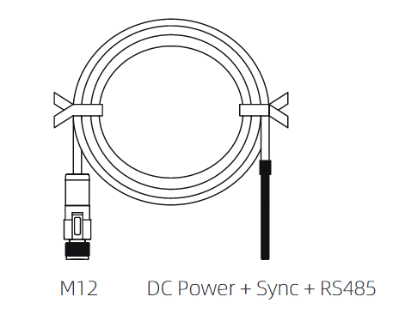

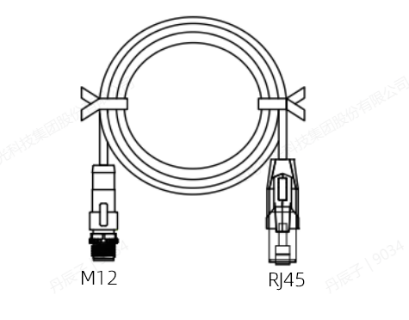

                                          Data Cable Power Cable                                                                Power Cable



2. CONNECTING THE ORBBEC CAMERA

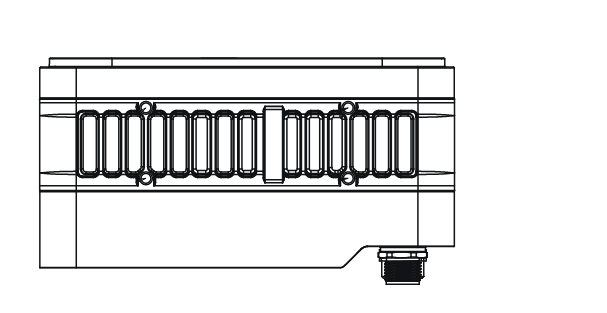

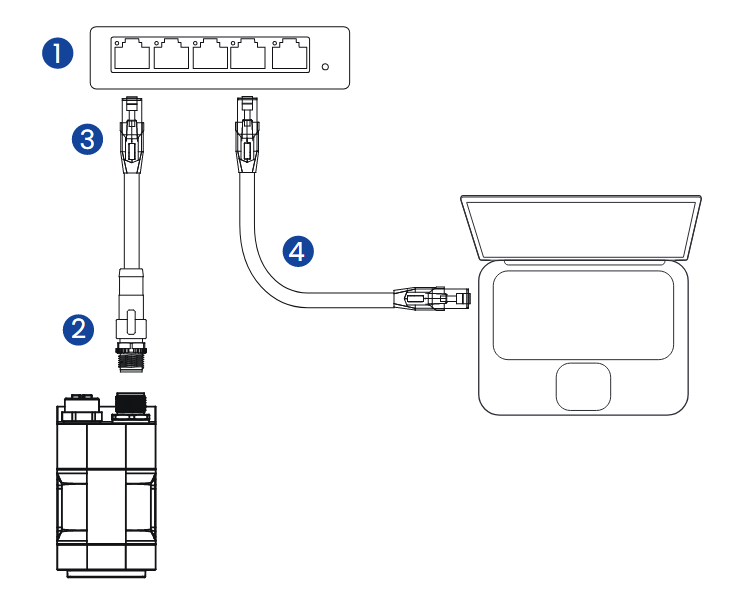

2.1 Connecting the camera using PoE (Power over Ethernet) for power supply.

  1. Prepare a PoE switch or a PoE-capable power source to supply power to the camera via the Ethernet (M12) data cable.

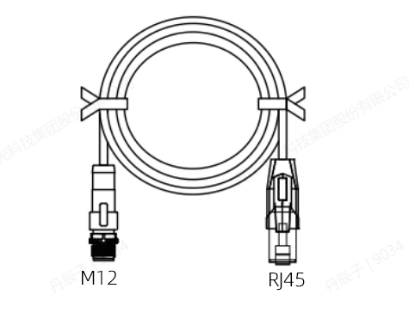

  2. Remove the protective cap from the camera's M12 port, and connect the M12 X-coded connector of the data cable to the M12 port on the camera.
  3. Insert the RJ45 end of the data cable into the PoE switch.
  4. Connect the host computer to the PoE switch using a standard RJ45 Ethernet cable (CAT 5E or higher). (For PC connection, a non-PoE port on the switch may be used.)


Configuration

Hardware Requirement

  • In the product retail package

Hardware Requirement

  • To be provided by the user

PoE-powered, Host with Ethernet Port

  • Gemini 435Le camera
  • Gemini 435Le data cable (2m)
  • PoE switch or PoE injector (IEEE 802.3af/at compliant), reference product:

PD-3501G/AC-US Microchip Technology | Power Supplies – External/Internal (Off-Board) | DigiKey

POE150S | Omada PoE Injector | TP-Link

Note: depending on your selected PoE switch/PoE injector, a power cable for it may be required. Please ensure the selected cable complies with your regional power supply standards.

  • Gigabit Ethernet cable
    • <10m, Cat5e or higher T568B-to-T568B or T568A-to-T568A standard compliant
    • 10m+, Cat6 or higher T568B-to-T568B or T568A-to-T568A standard compliant

PoE-powered, Host without Ethernet Port

In addition to the ‘PoE-powered, Host with Ethernet port’ configuration, a USB-to-Gigabit Ethernet adapter is required and to be provided by the user.

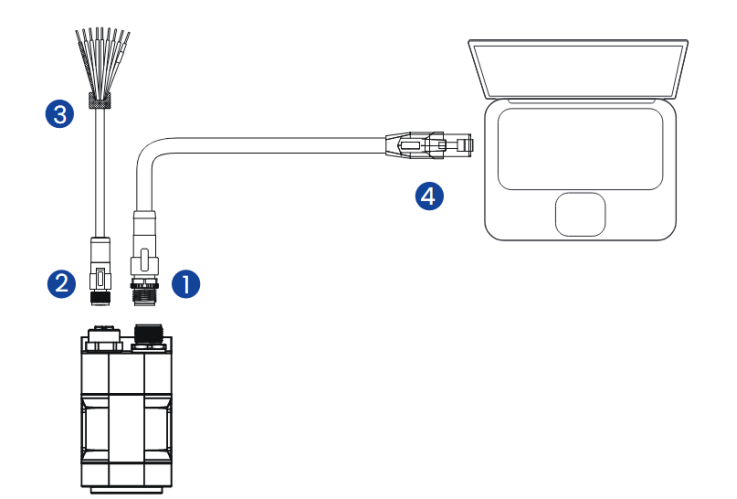

2.2 Connecting the camera using a DC power supply.

  1. Remove the protective cap from the camera's M12 port and connect the M12 X‑coded connector of the data cable to the camera's M12 port.

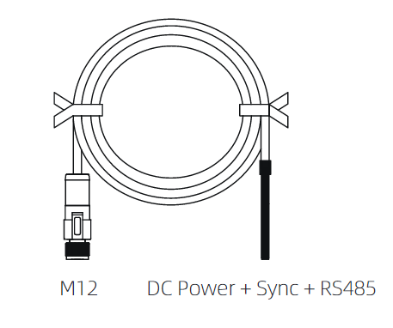

  2. Remove the protective cap from the camera's M12 port and connect the power cable to the camera's M12 port.
  3. Connect a 9‑24 V DC power supply to the red “POWER IN 9‑24V” pin and the black “POWER GND” pin.
  4. Insert the RJ45 end of the data cable into the host computer or into the gateway device to which the host is connected.


Configuration

Hardware Requirement

  • In the product retail package

Hardware Requirement

  • To be provided by the user

DC-powered, Host with Ethernet Port

  • Gemini 435Le camera
  • Gemini 435Le data cable (2m)
  • Gemini 435Le power cable (2m)
  • DC power supply (output: 9-24V, current: ≥1A)
  • If a power extension cord is required, make sure the current and voltage received by the camera’s original power cord harness meet the power supply requirements in its datasheet.

DC-powered, Host without Ethernet Port

In addition to the ‘DC-powered, Host with Ethernet port’ configuration, a USB-to-Gigabit Ethernet adapter is required and to be provided by the user.



3. GET ORBBEC VIEWER

Select and download the corresponding Orbbec Viewer based on your system and version.

https://www.orbbec.com/developers/orbbec-sdk/

4. LAUNCHING ORBBEC VIEWER



For detailed instructions, please refer to the Orbbec Viewer tutorial video below .

https://www.youtube.com/@Orbbec3d                                           image.png




5. Network Environment Configuration on the host

5.1 Linux platform

5.11 Environment preparation

  1. Prepare a Linux x86_64 / Arm64 platform with Ubuntu 20.04 or later.
  2. To ensure stable operation and optimal performance of the camera, connect the camera to a Gigabit (1000 Mbps) Ethernet port. If connected to a Fast Ethernet (100 Mbps) port, insufficient network bandwidth may result in failure to achieve expected performance and unstable connectivity.

5.12 Environment configuration

  1. The Gemini 435Le device has a default IP address of 192.168.1.10.
  2. The camera must be connected to the host via direct connection or through a switch, and the host must be in the same subnet for the device to be discovered and recognized.
  3. Once recognized, the Gemini 435Le can be accessed and controlled using the OrbbecViewer tool or the SDK.
  4. For detailed network configuration instructions, please refer to the documentation:Camera IP Configuration Function Description



5.13 Recommend Configuration

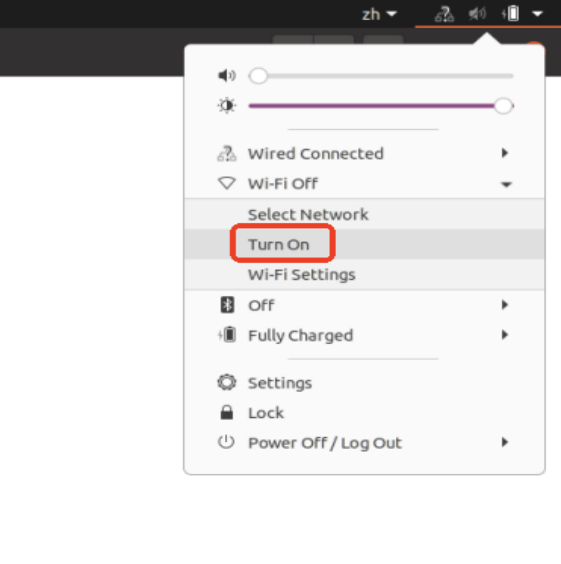

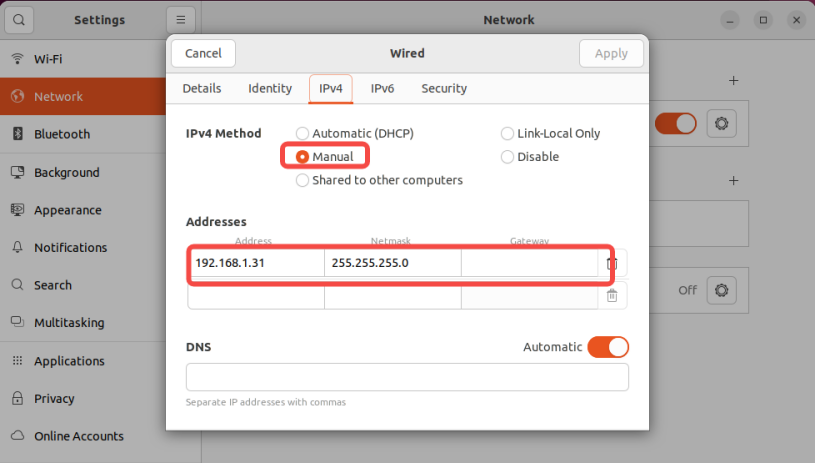

(1) If, after configuring the network environment as described in section "2", the Orbbec Viewer tool fails to recognize the Gemini 435Le network device, you should check whether the Wi-Fi connection is enabled. If Wi-Fi is enabled, it needs to be turned off first. Then, re-enable the local network connection or power cycle the network device, and it should be recognized.


(2) Due to differences in system networks and power management across platforms, packet loss may occur to varying degrees during the process of stream capture on the host machine, which can result in the frame rate not meeting expectations. Therefore, before using the Gemini 435Le device on different platforms, it is essential to configure and verify the platform and system settings to avoid issues like frame loss.

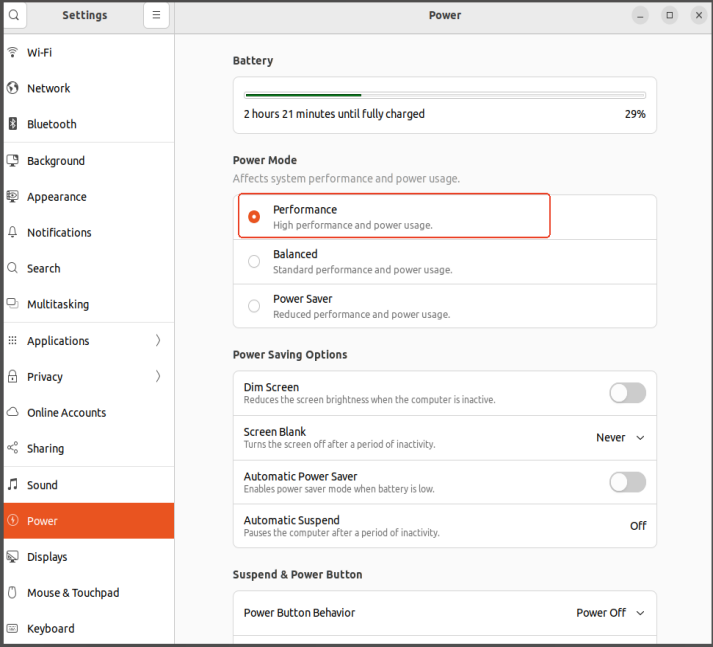

Computer power configuration:

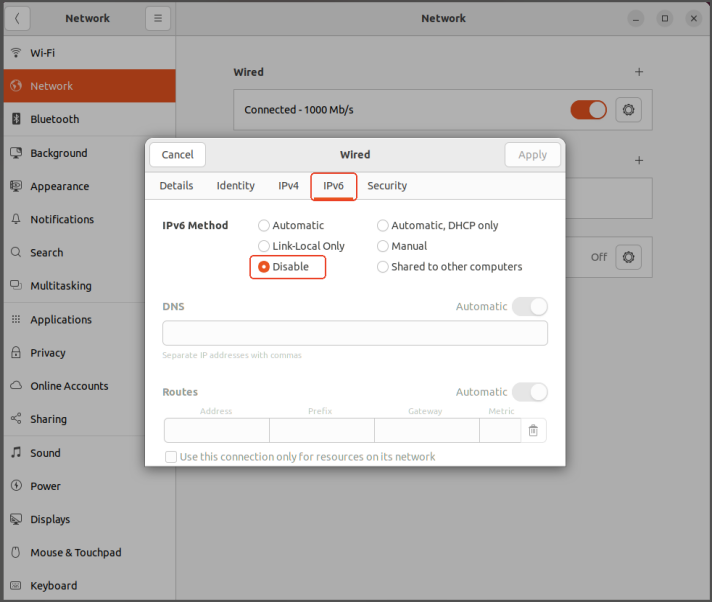

Computer network card configuration:


Firewall Configuration:

The firewall on Ubuntu is disabled by default. Ubuntu uses Uncomplicated Firewall (UFW) as the default firewall management tool, and UFW is disabled by default. If it is enabled, the user needs to manually configure it to be turned off. Before using Orbbec Viewer, make sure that the firewall is disabled.



5.1.4 Start Orbbec Viewer Experience

Once the environment and configurations are properly set up as described in the prevouse sections, you can start experiencing the Gemini 435Le by launching the provided Orbbec Viewer tool for Linux/Arm platforms, as shown in the image below:

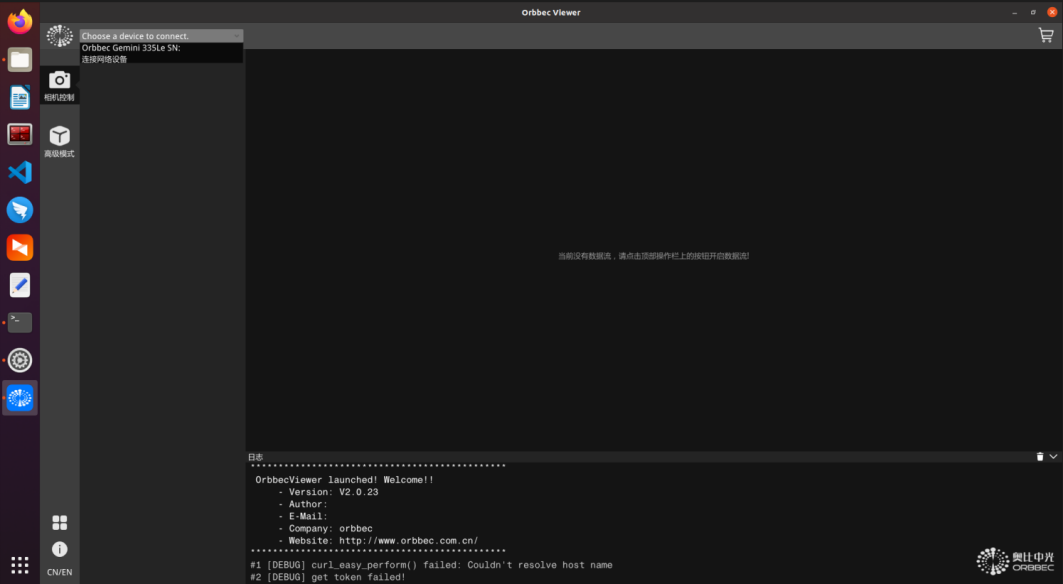

Open the Orbbec Viewer tool, select the Gemini 435Le network device you want to open, and click Open:




5.2 Windows Platform

5.21 Environment Preparation

  1. Windows 10 or above platforms, x64 operating system, 8/16GB or above memory;
  2. Connect directly using either the Ethernet port on the host/switch or through a USB-to-Ethernet adapter.

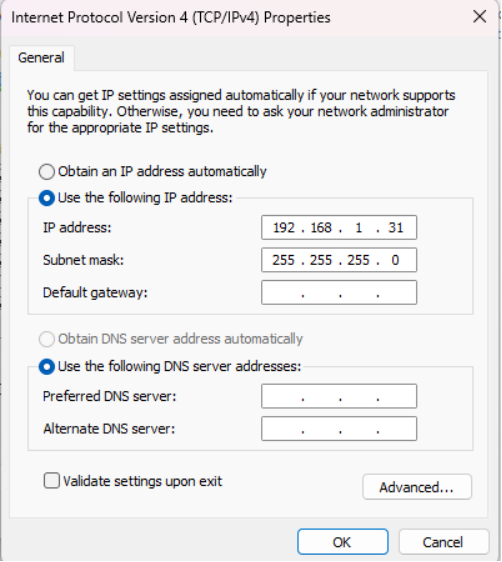

5.22 Network Configuration

  1. The Gemini 435Le device has a default IP address of 192.168.1.10.
  2. The camera must be connected to the host via direct connection or through a switch, and the host must be in the same subnet for the device to be discovered and recognized.
  3. Once recognized, the Gemini 435Le can be accessed and controlled using the OrbbecViewer tool or the SDK.
  4. For detailed network configuration instructions, please refer to the documentation:Camera IP Configuration Function Description




5.23 Recommend Configuration

Due to differences in system networks and power management across platforms, packet loss may occur to varying degrees during the process of stream capture on the host machine, which can result in the frame rate not meeting expectations. Therefore, before using the G335Le device on different platforms, it is essential to configure and verify the platform and system settings to avoid issues like frame loss.

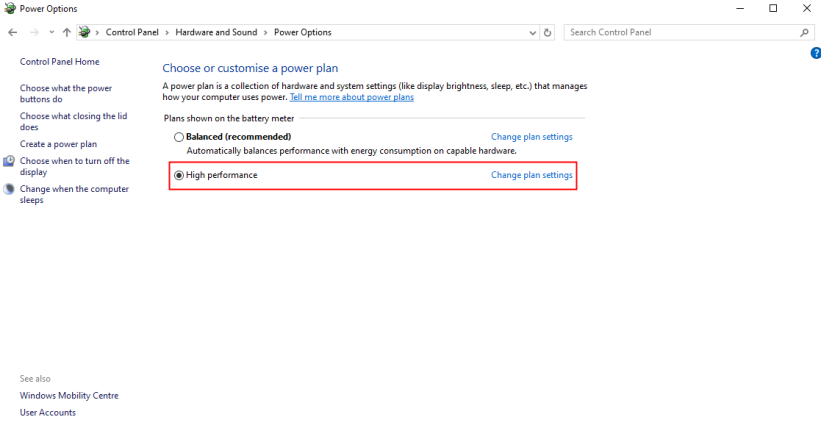

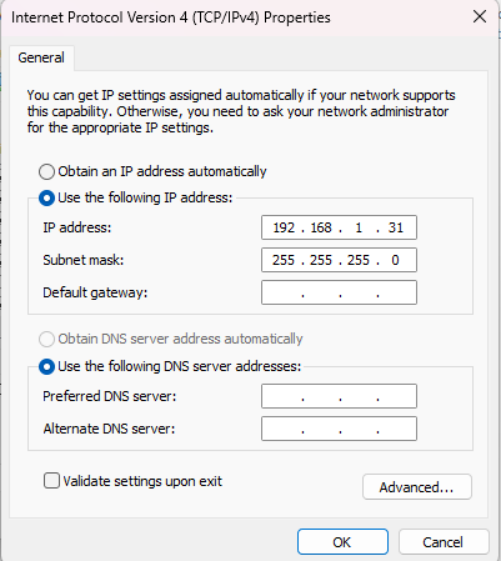

  1. Computer power configuration:

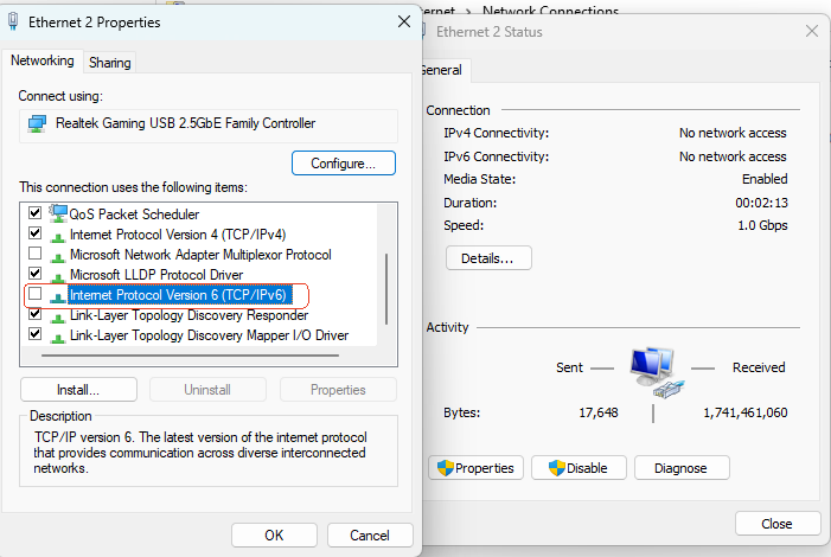

     2.  Computer network card configuration:


3. Computer firewall configuration:

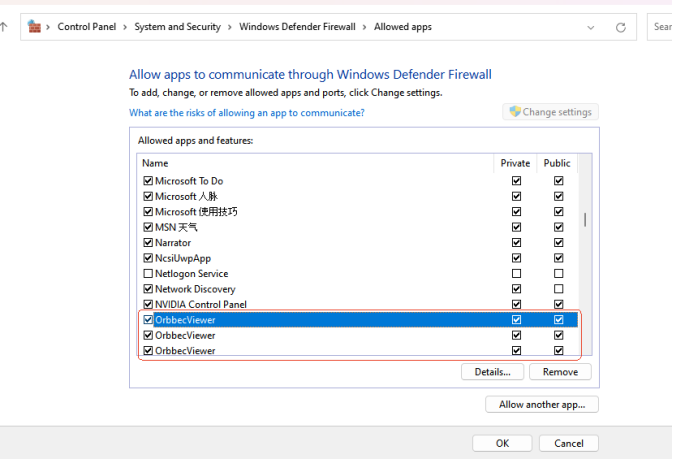

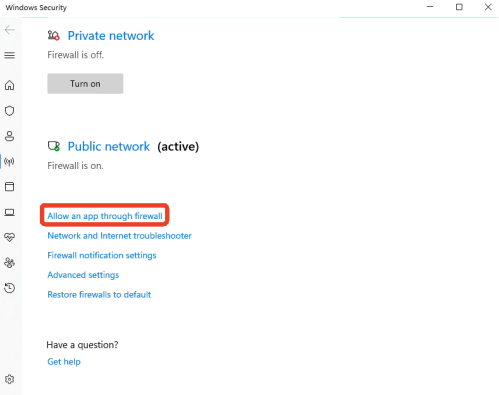

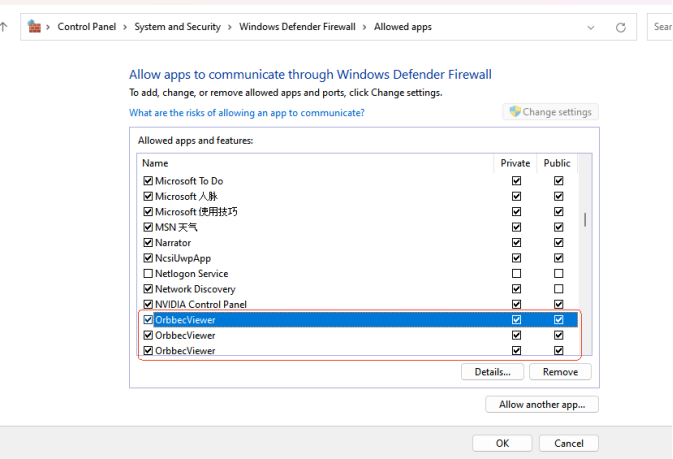

To allow Orbbec Viewer to communicate through Windows Defender Firewall, follow the path below: Control Panel\System and Security\Windows Defender Firewall



5.24 Start Orbbec Viewer Experience

Once the environment and configurations are properly set up as described in the previous sections, you can start experiencing the G435Le by launching the provided Orbbec Viewer tool on Windows platforms, as shown in the image below:

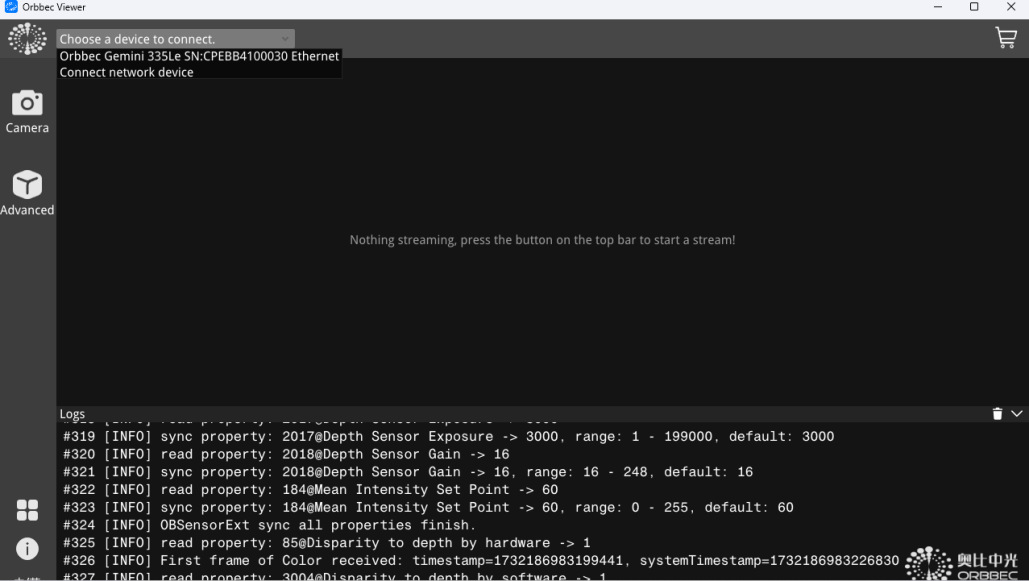

Open the Orbbec Viewer tool, select the G435Le network device you want to open, and click Open:

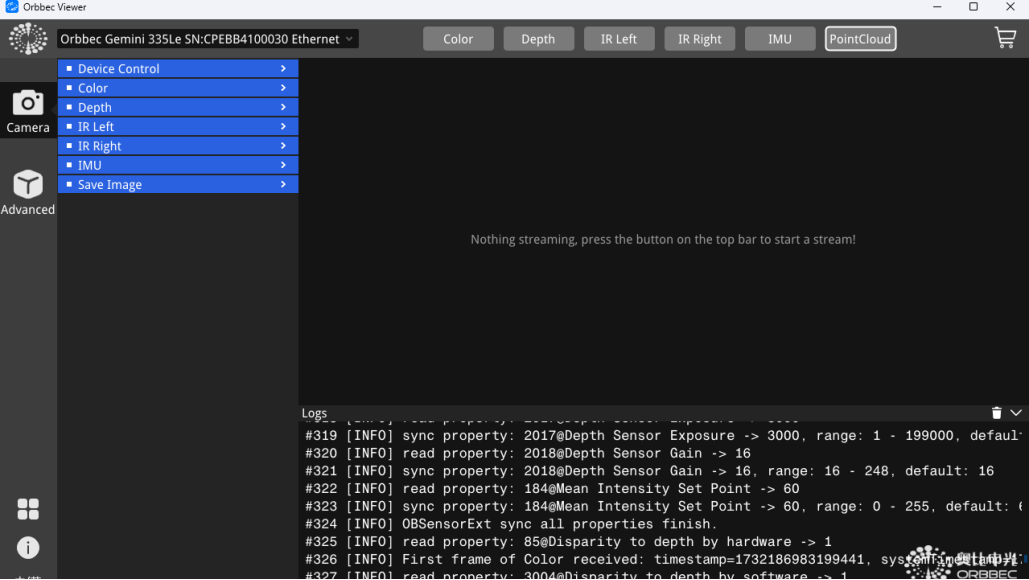

Once the device is successfully loaded, the detailed functionality window will appear, allowing you to start the experience:
